BRAND NEW
GENUINE GM PERFORMANCE

LS376/525  DR525   525HP Hot Cammed
LS3 V8 6.2L Crate Engine

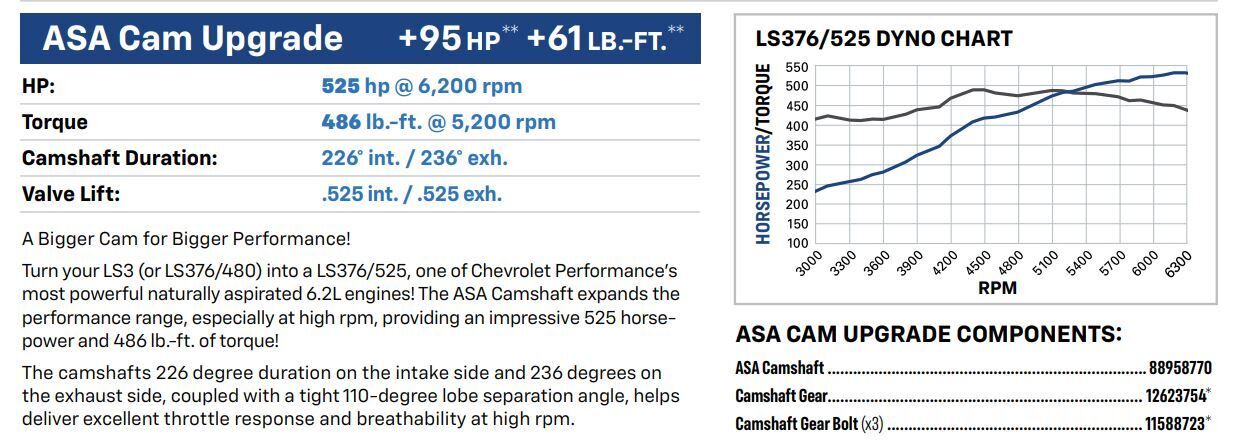

GM Performance 6.2L 376 C.I.D. LS3 engine features
an impressive 525 hp @ 6,200 rpm with 486 lb.-ft. of torque.

 It blends the racing-derived ASA camshaft with the LS3 6.2L production engine
to create the most powerful production-based crate engine.

The DR525 has (4) tamper proof fasteners fitted for the racing series however
is identical in the rotating assembly, block, ancillaries etc.. etc.

PAYMENT TERMS - DIRECT DEPOST (EFT) ONLY *
IN STOCK NOW.... CALL US TODAY '03 9532 1817'

Part Number: 19434599   (Gen-4 Sump)
Engine Type: LS-Series Gen IV Small-Block V-8
Displacement (cu in): 376 cu in (6.2L)
Bore x Stroke (in): 4.065 x 3.622 (103.25 x 92mm)
Block (P/N 12623967): Cast aluminum with 6-bolt, cross-bolted main caps
Crankshaft (P/N 12597569): Nodular iron
Connecting Rods (P/N 12607475): Powdered metal
Pistons (P/N 19207287): Hypereutectic aluminum
Camshaft Type (P/N 88958770): Hydraulic roller - GM Performance
Valve Lift (in): 0.525 intake / 0.525 exhaust
Camshaft Duration (@0.050 in): 226° intake / 236° exhaust
Cylinder Heads (P/N 12629063): Aluminum L92-style port; as cast with 68cc chambers
Valve Size (in): 2.165 intake / 1.590 exhaust
Compression ratio: 10.7:1
Rocker Arms (P/N 12669995 int): Investment cast, roller trunnion
Rocker Arms (P/N 12669993 exh): Investment cast, roller trunnion
Rocker Arm Ratio: 1.7:1
Recommended Fuel: Premium pump
Maximum Recommended RPM: 6,600
Reluctor Wheel: 58x

BRAND NEW - GENUINE GM STOCK.
NOTE: These GM Performance engines DO NOT
have a engine number stamped.
Holmart P/L will always supply appropriate paperwork for
Roads Office/s within Australia / New Zealand.
