BRAND NEW
GENUINE GM PERFORMANCE

NEW Hot Cam "525HP"

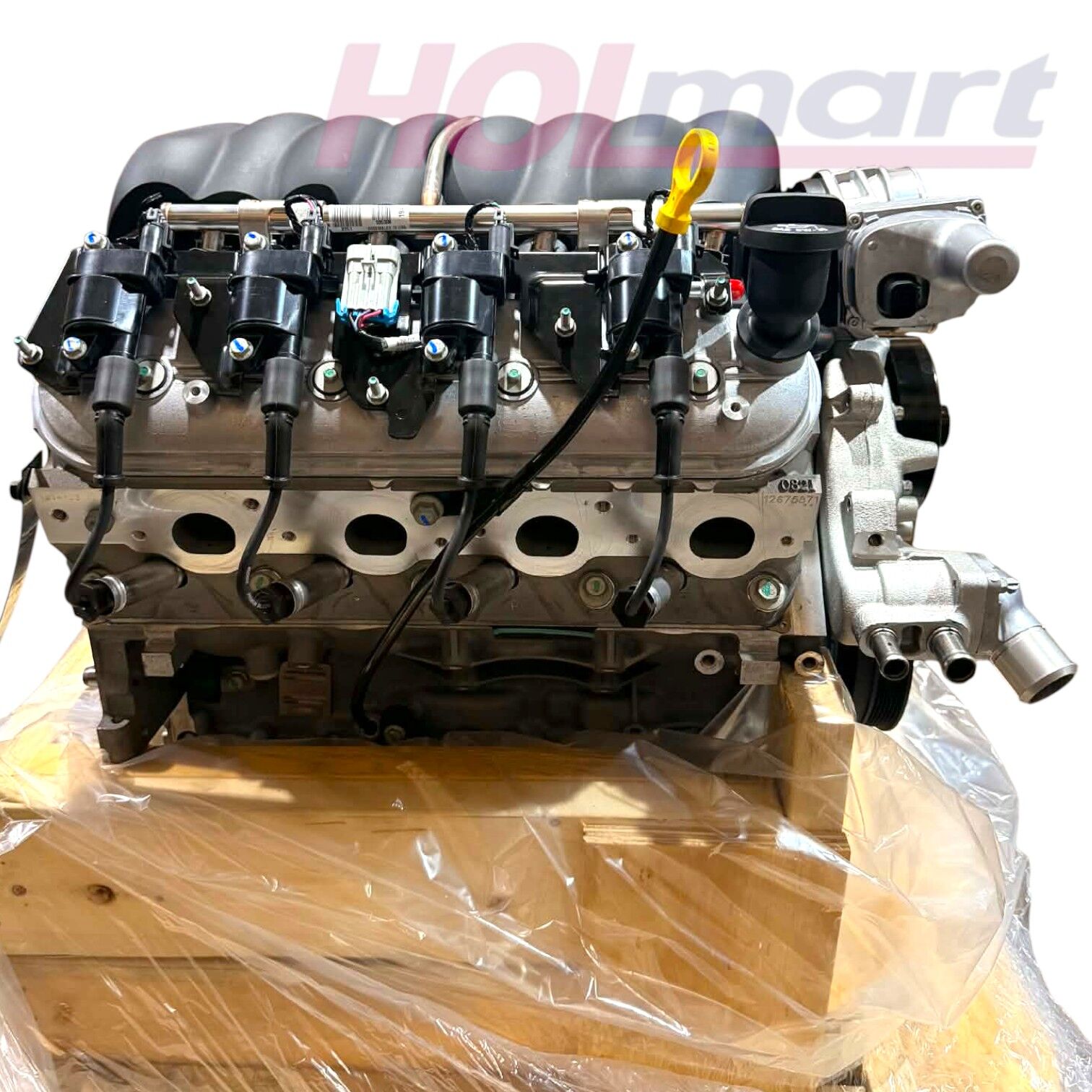

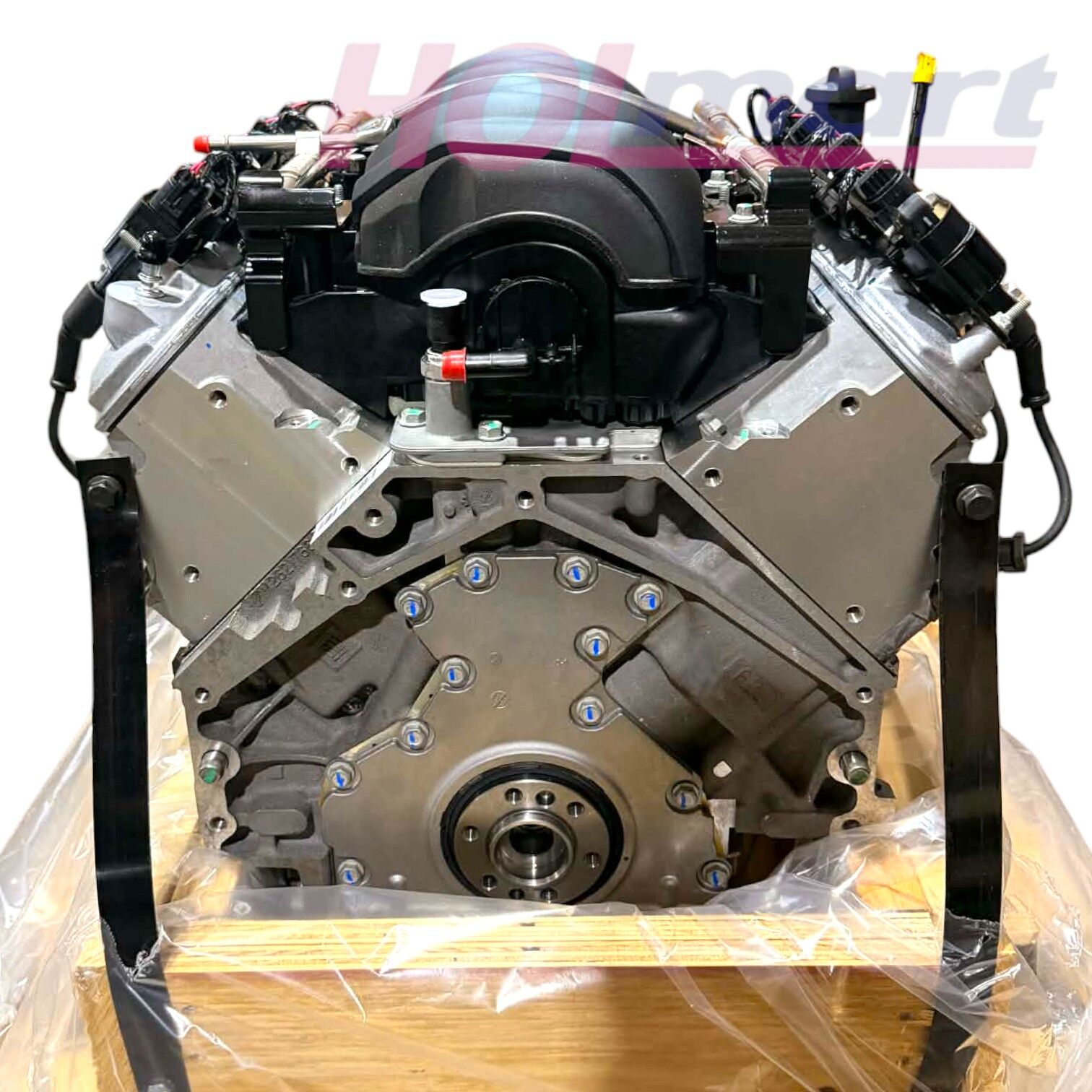

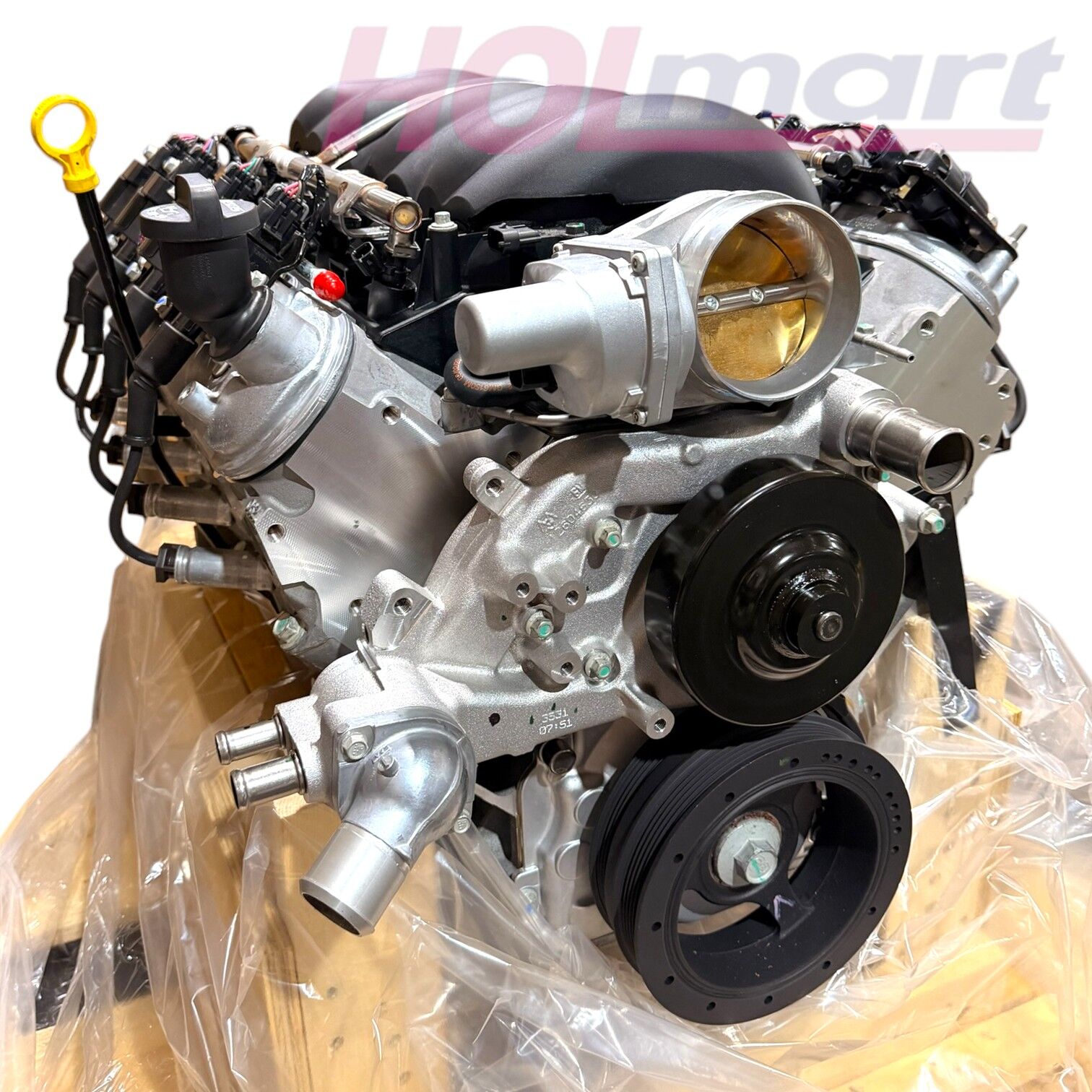

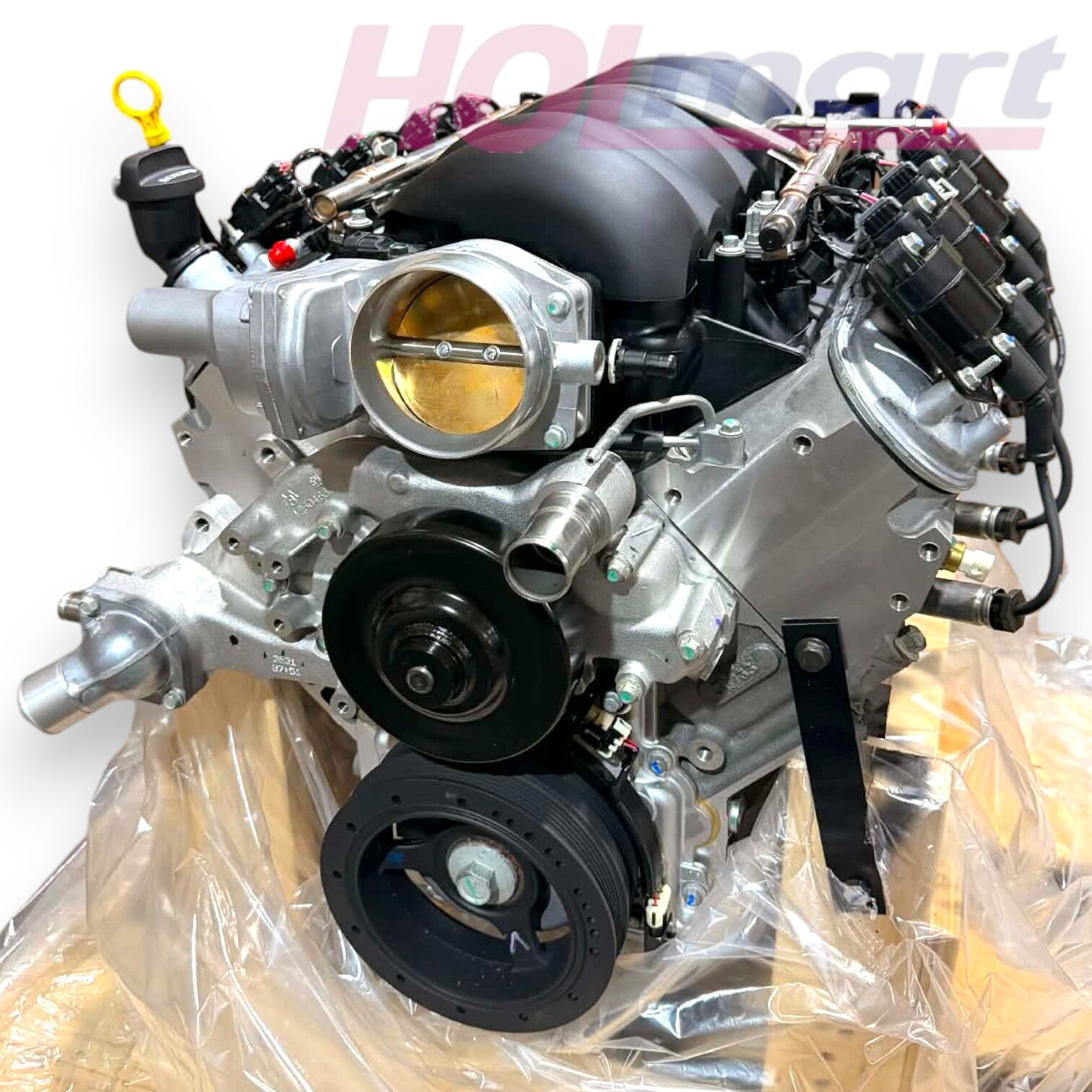

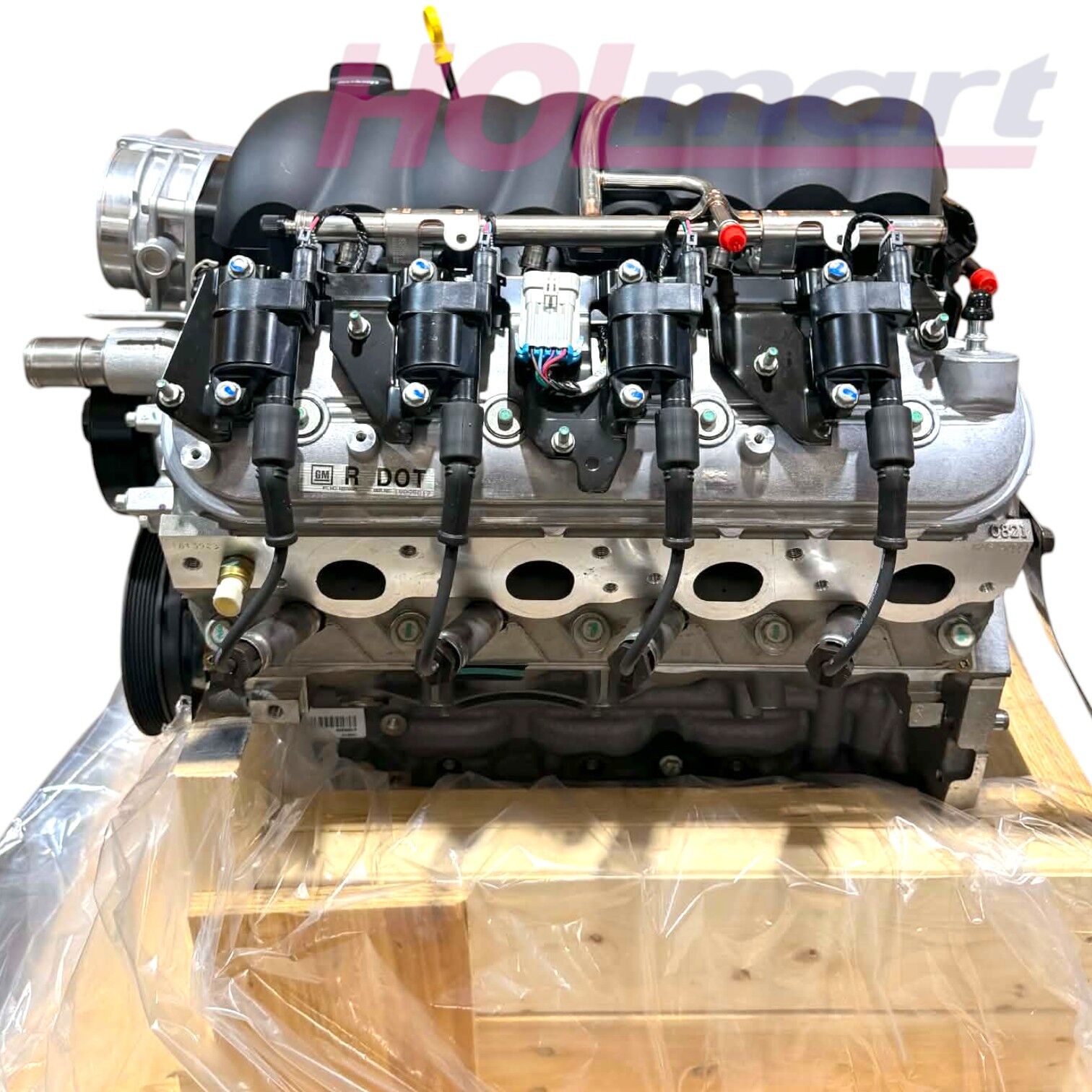

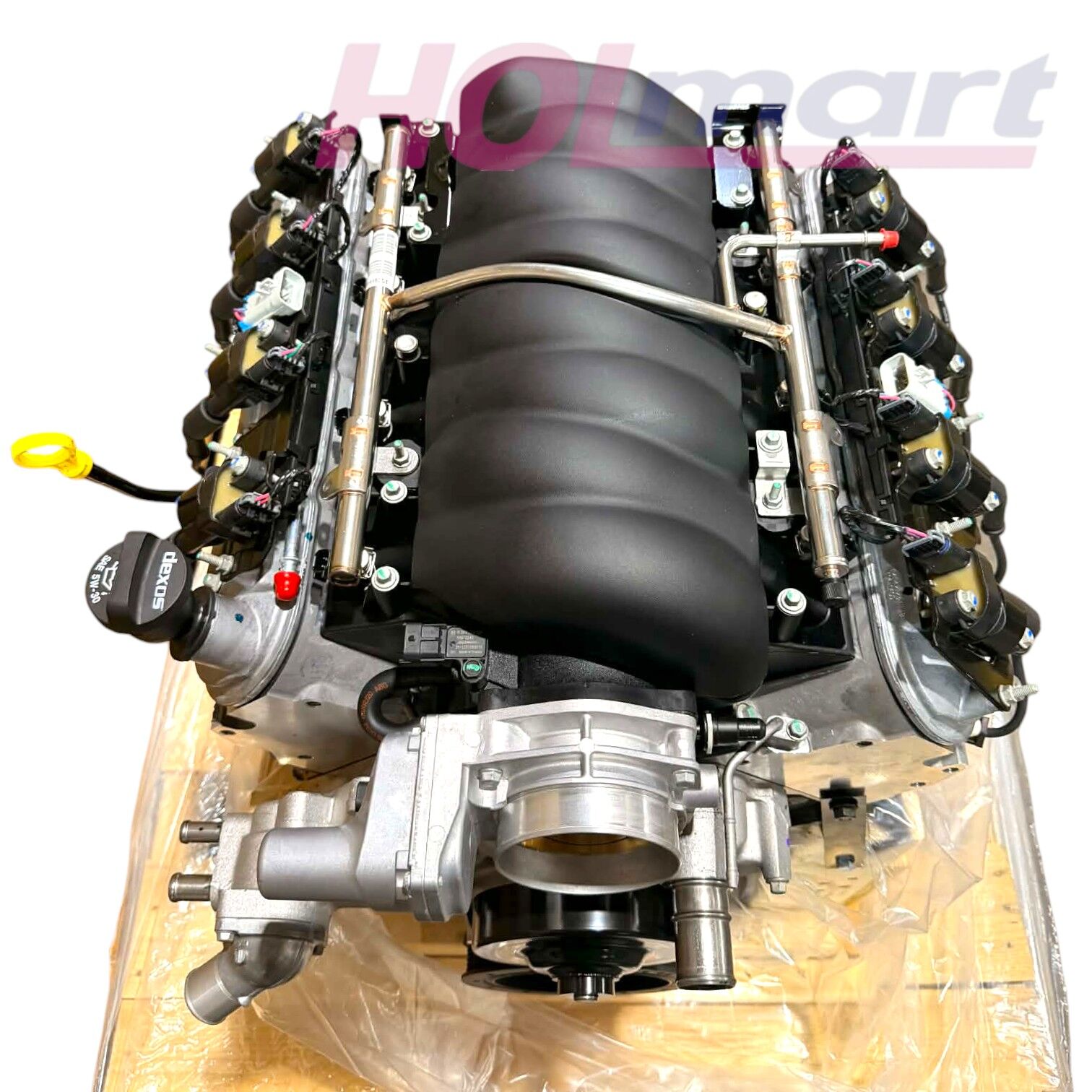

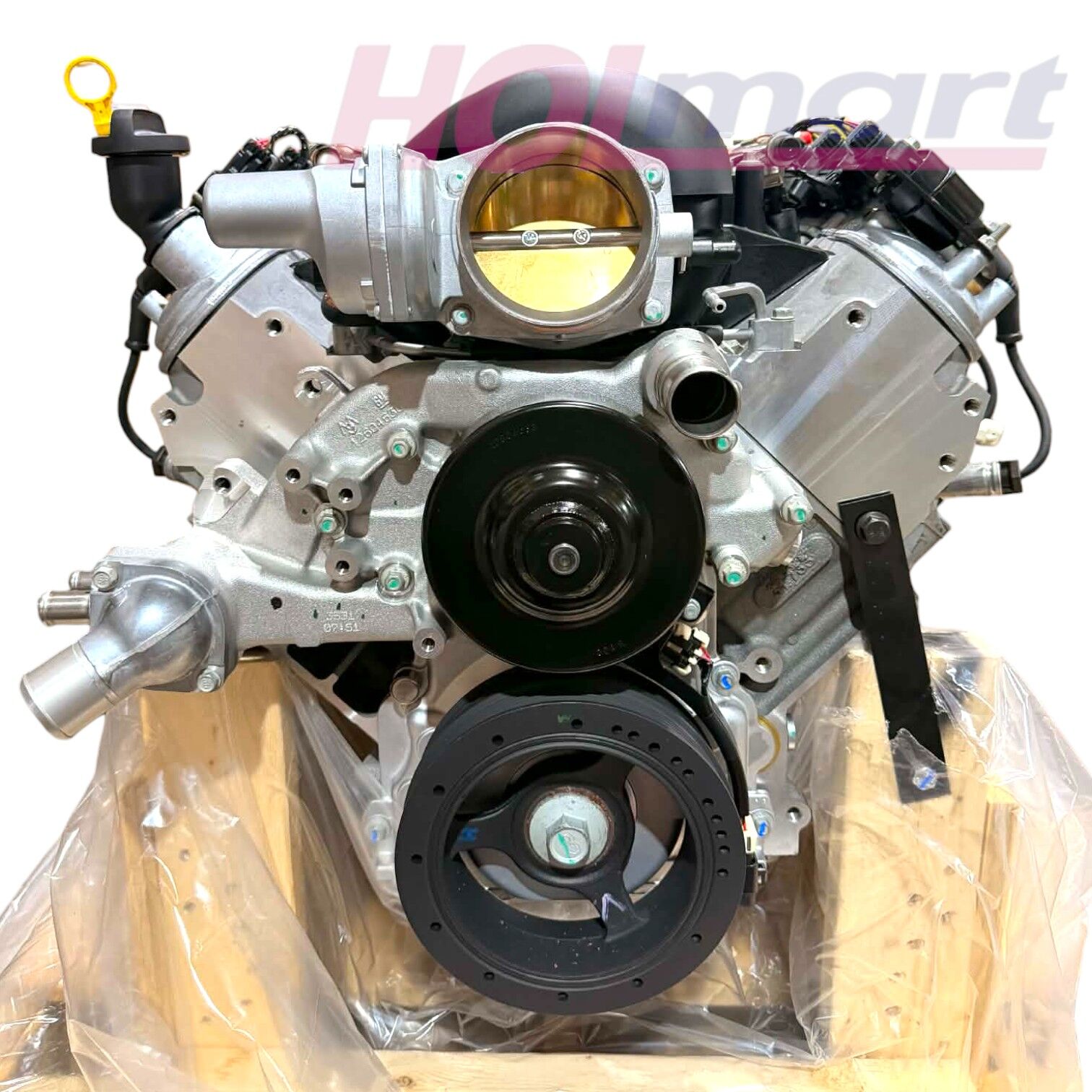

LS3 V8 6.2L Crate Engine

GM Performance 6.2L 376 C.I.D. LS3 engine features
an impressive 525 hp @ 6,200 rpm with 486 lb.-ft. of torque.

 It blends the racing-derived ASA camshaft with the LS3 6.2L production
engine to create the most powerful production-based crate engine.

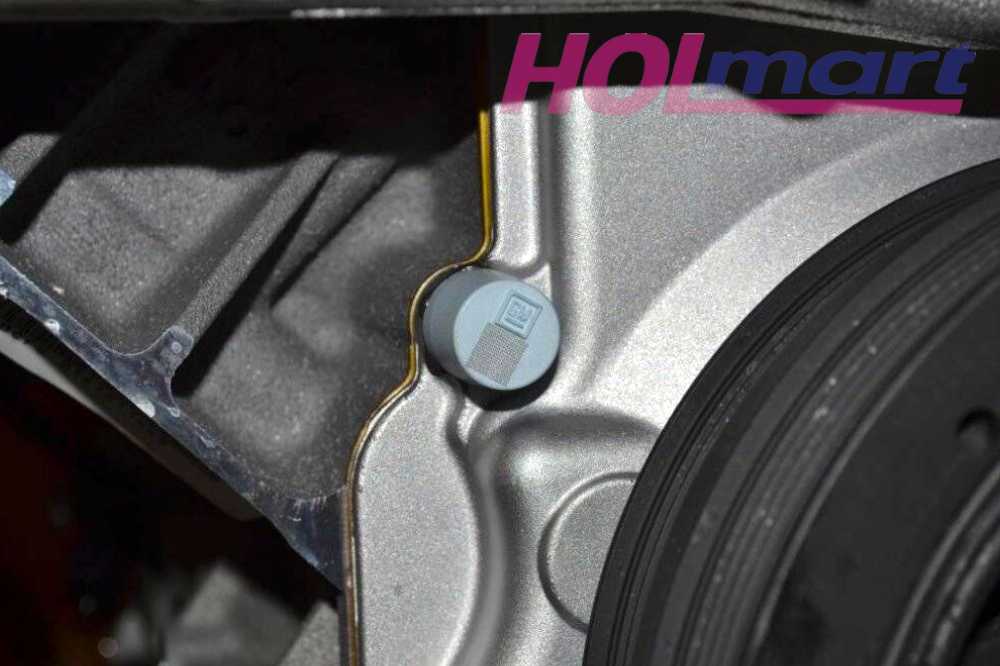

The DR525 has (4) tamper proof fasteners fitted for the racing series however,
are identical in the rotating assembly, block, ancillaries etc.. etc.
No real issue with these, if required, you just prize off the cap.

PAYMENT TERMS - DIRECT DEPOST (EFT) ONLY *
IN STOCK NOW.... CALL US TODAY '03 9532 1817'

Part Number: 19434599   (Gen-4 Sump)
Engine Type: LS-Series Gen IV Small-Block V-8
Displacement (cu in): 376 cu in (6.2L)
Bore x Stroke (in): 4.065 x 3.622 (103.25 x 92mm)
Block (P/N 12623967): Cast aluminum with 6-bolt, cross-bolted main caps
Crankshaft (P/N 12597569): Nodular iron
Connecting Rods (P/N 12607475): Powdered metal
Pistons (P/N 19207287): Hypereutectic aluminum
Camshaft Type (P/N 88958770): Hydraulic roller
Valve Lift (in): 0.525 intake / 0.525 exhaust
Camshaft Duration (@0.050 in): 226° intake / 236° exhaust
Cylinder Heads (P/N 12629063): Aluminum L92-style port; as cast with 68cc chambers
Valve Size (in): 2.165 intake / 1.590 exhaust
Compression ratio: 10.7:1
Rocker Arms (P/N 12669995 int): Investment cast, roller trunnion
Rocker Arms (P/N 12669993 exh): Investment cast, roller trunnion
Rocker Arm Ratio: 1.7:1
Recommended Fuel: Premium pump
Maximum Recommended RPM: 6,600
Reluctor Wheel: 58x

Camshaft Specifications :
* Duration @ .050" Lift (Degrees):       Intake: 219 / Exhaust: 228
* Maximum Lift (in) W/ 1.7 Rocker:        Intake: .525 / Exhaust: .525
* Lobe Centerline (Degrees):     112

BRAND NEW - GENUINE GM STOCK.
NOTE: These GM Performance engines DO NOT
have a engine number stamped.
Holmart P/L will always supply appropriate paperwork for
Roads Office/s within Australia / New Zealand.
